Seattle Tunnel Partners says Bertha should resume drilling the Highway 99 tunnel this week, after problems that included a barge mishap and, now, a sinkhole.
The manager of the Highway 99 tunnel dig promises to keep a closer watch on the soil removed by boring-machine Bertha, after a sinkhole formed Tuesday night near the waterfront.
That incident happened the same day as a Seattle Tunnel Partners (STP) barge listed while being loaded with tunnel muck alongside Terminal 46. The tilting barge dislodged at least 15 concrete pilings and spilled soil into Puget Sound.
Such foibles raise the question about whether more trouble awaits Bertha — which just started digging again after extensive repairs and will soon burrow under the Alaskan Way Viaduct.
“What can I say? Some things happen. We still remain confident in everything that we’re going be doing forward, to complete the tunnel drive,” STP project manager Chris Dixon said Wednesday.
He said dirt will be manually measured every 6½ feet, while the machine stops to assemble each new ring of the tunnel tube. Those calculations will be compared with the theoretical amount of soil that Bertha ought to remove per ring.
Dixon said STP was performing the manual measurements earlier in the project.
If soil flow is bungled as Bertha moves north, sinkage or voids could destabilize the viaduct and brick buildings in Pioneer Square.
“We’re certainly disappointed they [STP] allowed it to occur,” said Brian Nielsen, deputy Highway 99 administrator for the Washington State Department of Transportation (WSDOT).
Voids can occur when too much dirt falls into the rotating cutterhead of a cylindrical drill, and the soil overhead settles.
STP’s bid proposal calls for multiple soil checks, including both scales and lasers. The state seeks to prevent the kinds of voids that appeared in the Brightwater sewer project, and almost swallowed a house above Sound Transit’s Beacon Hill Tunnel.

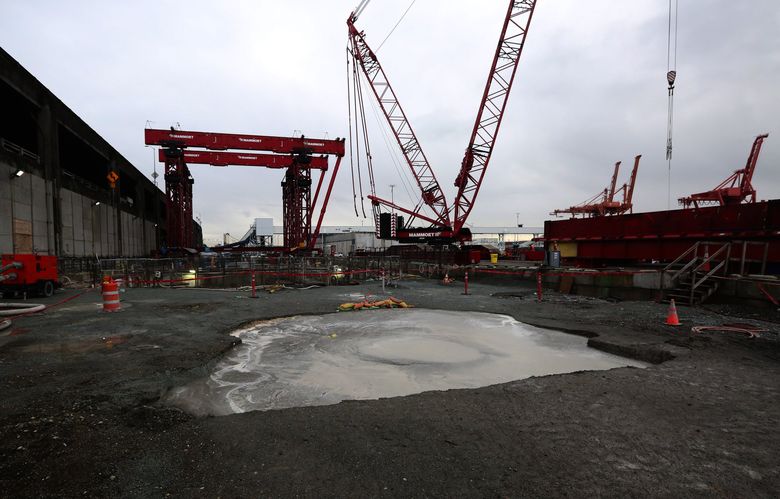

Tuesday’s sinkhole was 35 feet long, 20 feet wide and 15 feet deep, and filled by 250 cubic yards of concrete-sand mix.
Dixon wouldn’t quite call it an oversight, but said:
“The focus and everybody’s attention has been on the machine and how it’s performing, and whether it’s operating within tolerances, whether we’re controlling the heat in the machine, checking the gaps on the seals, making sure the machine is repaired and able to complete the tunnel drive.”
Bertha is two years late on its journey from Sodo to South Lake Union, where contractors are building the world’s widest single-bore tunnel, at 57 feet, 4 inches diameter, to replace the old, seismically vulnerable viaduct. The four-lane, tolled tunnel is now estimated to open in April 2018.
A much smaller sinkhole opened on the project in November 2013, but it caused little alarm because of Bertha’s location in shallow fill soil.
WSDOT said neither of these harmed the nearby viaduct, which is protected by an underground fence of concrete pillars that STP poured early in the job, for just this purpose.
But what’s to prevent future, more destabilizing voids while digging below downtown?
