Final engineering for the difficult I-90 light-rail crossing requires as much as $20 million in added costs, to cover added research and “inefficiencies” in the work flow.
Before the first tracks are installed, Sound Transit must spend as much as $20 million in unexpected engineering costs to finish designing the world’s only rail corridor over a floating bridge, as it extends service to the Eastside.
Ron Lewis, project director for East Link, shared the blame between his own team and engineering giant Parsons Brinckerhoff (PB). The company could now earn $56 million instead of its earlier $36 million contract figure, which began at $28 million in 2012.
Along with what Lewis called “inefficiencies” in the workflow, the cost increase will pay for deeper research than managers envisioned.
Lewis and PB said they are learning as they go along in designing this unique crossing.
Most Read Local Stories
- Two Boeing employees shot and injured on I-5 early Tuesday
- Public health officials in Snohomish, other Western Washington counties urge mask use indoors as COVID cases rise
- Washington's governor urges the vaccinated to wear masks indoors in certain counties, won't impose new mandates
- Seattle's longstanding 'urban village' strategy for growth needs reworking, new report says
- Coronavirus daily news updates, July 27: What to know today about COVID-19 in the Seattle area, Washington state and the world
Lewis said PB will be “held accountable” and made to justify any of the extra compensation. He called the $20 million change a contingency, which won’t necessarily all be used.

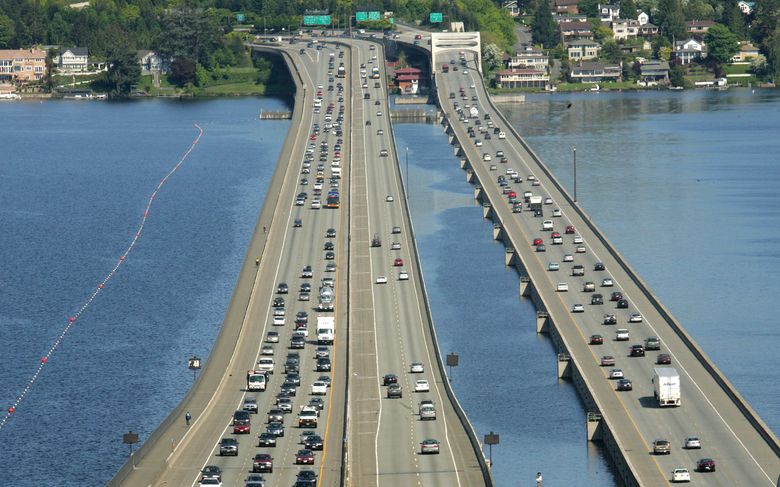

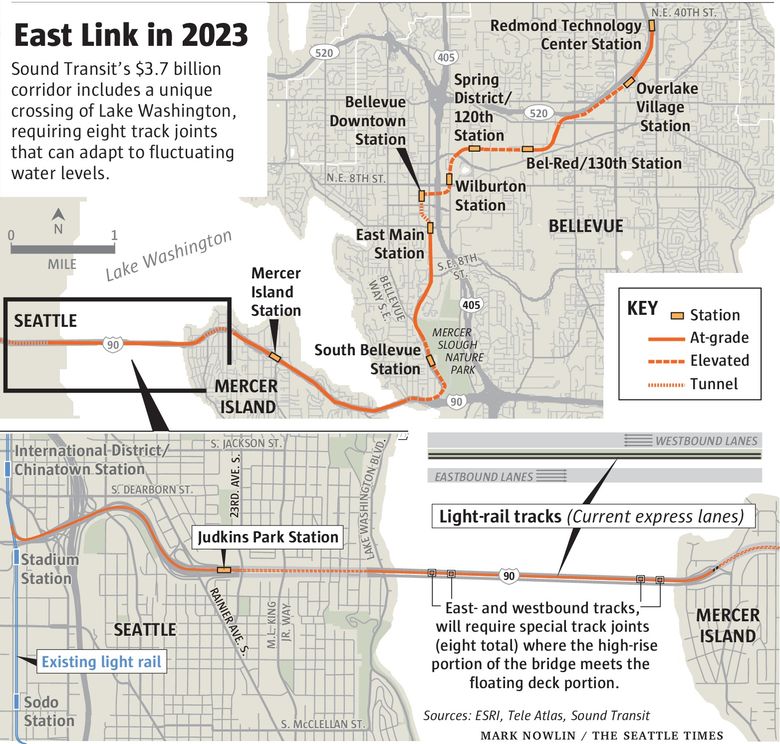

The signature feature is the set of eight custom joints called track bridges, which must be installed on Interstate 90 to withstand wind, waves, and 2 feet of seasonal fluctuation in Lake Washington’s level.
