The state Department of Transportation will keep the viaduct open to traffic during the delicate operation, which started Monday.
UPDATE: 1:10 p.m. Monday | Mammoet has started to hoist the front end of tunnel machine Bertha, according to a state news advisory just before 1 p.m.
It will take an hour or two before the top of the 57.3- foot-diameter cutterhead will be visible to news photographers. The giant machine was resting on the bottom of a temporary repair vault, some 120 feet deep.
Earlier Monday, the lifting crews conducted incremental tests — pulling with less force than what’s needed to raise Bertha’s 4-million pound drive unit into the air — to confirm that the motors and cables are up to the task, according to Laura Newborn, spokeswoman for the Washington State Department of Transportation.
After several hours, the parts will be slowly laid onto a stand 17 feet south of the repair vault, for dissassembly.
Most Read Local Stories
- Washington state teachers, child care workers can now get COVID-19 vaccines, Gov. Inslee says
- Seattle weather: Enjoy these springlike days before we return to our regularly scheduled programming
- Coronavirus daily news updates, March 2: What to know today about COVID-19 in the Seattle area, Washington state and the world
- Two charged with murder, accused of fatally shooting teen; body found in North Seattle snowbank
- Grazing rights rescinded for controversial Oregon ranchers
The nearby Alaskan Way Viaduct remains open.

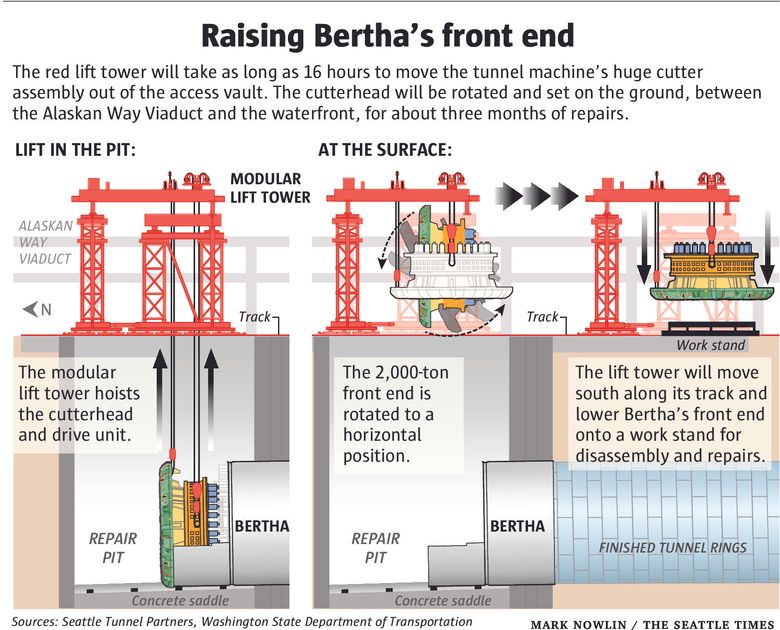

ORIGINAL STORY | Early this week, that red tower along the Seattle waterfront will lift a 4-million-pound piece of tunnel machine Bertha and lay it on the surface, cutter face down.
