At present rates, the Seattle Department of Transportation says it might be able to afford only half the 50 miles of bike lanes promised in the Move Seattle levy approved by voters in 2015.

Share story

Instead of a ribbon-cutting, Seattle officials called for a “soft launch” this month for a protected bike lane on Seventh Avenue. They didn’t celebrate an expanded bicycle lane through Belltown on Second Avenue, completed in February.

Photo-ops might bring attention to the startling $12 million-a-mile cost to build new downtown cycling routes, a ripe target for commuters bitter about traffic and growth.

Cycling supporters aren’t happy either.

At present rates, the Seattle Department of Transportation (SDOT) says it might be able to afford only half the 50 miles of bike lanes promised in the Move Seattle levy approved by voters in 2015.

“Clearly, SDOT needs to work much harder on value-engineering the costs of these projects down,” interim director Goran Sparrman said in a recent interview. “Second Avenue clearly is a far outlier. But we simply can’t afford those things.”

The costs helped push the citywide average for bike-lane construction to $1 million to $2 million per mile — double the $860,000 rate shown in ex-mayor Ed Murray’s levy proposal and four times national averages.

Why are they so expensive?

There’s more to a project than paving a bike lane.

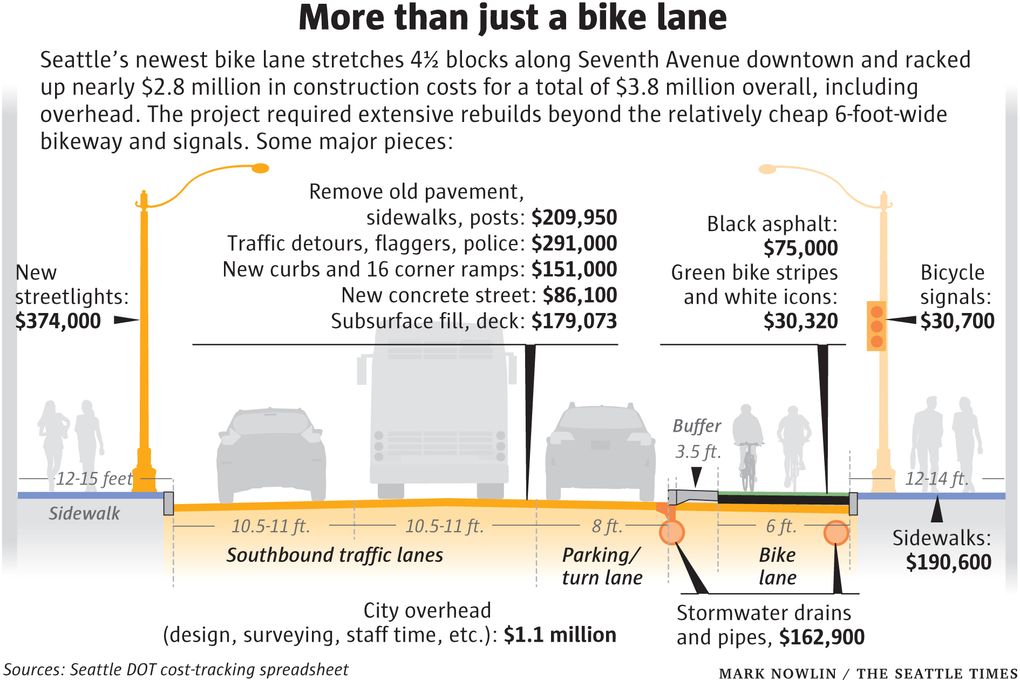

Direct costs to install Seventh Avenue’s 6-foot-wide asphalt path, including bike-shaped icons and signals over 4½ blocks, consumed less than one-tenth of the $3.8 million spent, city records show.

It’s the other stuff — curbs, engineering, sidewalk retrofits, traffic control and especially drainage — that can break the budget.

Traffic Lab is a Seattle Times project that digs into the region’s thorny transportation issues, spotlights promising approaches to easing gridlock, and helps readers find the best ways to get around. It is funded with the help of community sponsors Alaska Airlines, CenturyLink, Kemper Development Co., NHL Seattle, PEMCO Mutual Insurance Company, Sabey Corp., Seattle Children’s hospital and Ste. Michelle Wine Estates. Seattle Times editors and reporters operate independently of our funders and maintain editorial control over Traffic Lab content.

Learn more about Traffic Lab » | Follow us on Twitter »

Bicyclists using Second Avenue’s nearly 1-mile, two-way lane actually ride on old pavement, but new signals account for 40 percent of the $11 million spent, Sparrman said. All intersections were rewired for the new traffic lights and steel posts, including three that had none before.

Actually, the city didn’t promise downtown bike lanes for only $860,000 a mile. Nor did it overrun budgets by a factor of 14. That figure is an average that includes much cheaper locations.

Elliot Helmbrecht, an SDOT liaison to community groups, said it appears levy planners simply divided the plan’s $94 million bike allotment by their goal to develop 50 miles of protected bicycle lanes and 60 miles of landscaped, slow roads called greenways to improve pedestrian and bicyclist safety.

“It’s a math equation,” said Helmbrecht, who earlier managed the Move Seattle campaign. “If you were to deliver 110 miles of commitments, you would have to see that number.”

City Councilmember Rob Johnson said the $860,000 figure looked reasonable based on what they heard from other cities, including Chicago.

Seattle projects exceed an average for U.S. bicycle lanes of $133,170 a mile and a high of $536,680. More elaborate paved trails averaged $481,140 with a high of $4.3 million a mile, a 2013 national report says.

Murray’s transportation director, Scott Kubly, who now works for the bike-share company LimeBike, declined to comment for this story.

Former deputy director Barbara Gray, now Toronto’s transportation director, said she doesn’t believe SDOT misled voters.

Creating solid, bottom-up estimates for each corridor was “not practical for a levy,” she said. “I don’t think you get any reasonable certainty on cost, until you get to 30 percent design.”


4½ blocks, $3.8 million

The southbound bike lane on Seventh Avenue provides safe passage from the Amazon Spheres to the Washington State Convention Center.

A city engineer estimated construction at $1.5 million to $1.8 million; the low bid by Gary Merlino Construction was $2 million, including taxes.

A subcontractor installed the asphalt for $76,000, including 275 work hours at standard union wages, such as $46.50 per hour for laborers.

Here’s the expensive part:

If you’re exiting the Met Tower apartments near Stewart Street to catch a taxi, you’ll cross a concrete sidewalk, the asphalt bikeway, and another sidewalk — all sandwiched together on the same level, atop a 4-inch-high curb. Walking is safe and vendors can deliver boxes, on wheeled dollies, to the wine shop and three restaurants.

Providing raised walkways on three blocks of the bike lane required intricate cutting, digging, form work, and especially drainage. The overall project has 11 new grates and basins, 363 feet of steel pipe, and more a half-mile of new plastic conduit for utility or signal rewiring.

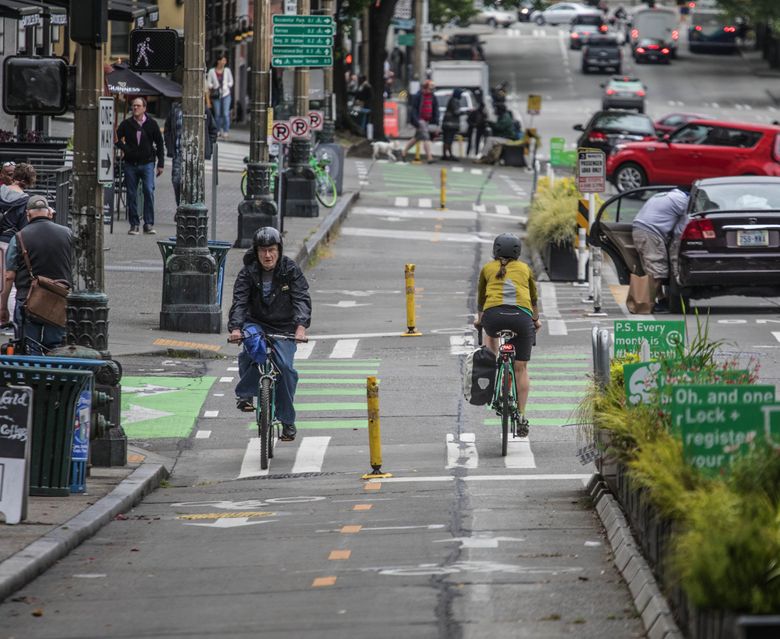

Bicyclists commute in the bike lanes on Second Avenue in downtown Seattle on Friday, May 18.  (Steve Ringman/The Seattle Times)
Bicyclists commute in the bike lanes on Second Avenue in downtown Seattle on Friday, May 18. (Steve Ringman/The Seattle Times)

Traffic signs, planning and flaggers added $240,000, to manage lane closures. Police providing traffic control worked 425 hours at $120 per hour, when major intersections were blocked.

Merlino project managers declined to comment, but a city spending chart shows the Seattle company fulfilled its contract without disputes or mistakes.

However, workers discovered sandy soils that required extra spending to prevent sinkholes.

Merlino’s team excavated 110 cubic yards of dirt — four times the volume SDOT anticipated. Workers poured gravel and sprayed low-density concrete to fill the voids, boosting overall costs to $2.4 million.

Seattle City Light took advantage of torn-up streets to replace and retrofit streetlights, at ratepayer expense of $374,000.

Engineering, surveying, public outreach and staff time added more than $1 million, bringing the total to $3.8 million, for one-third of a mile.


Multimillion-dollar traffic signals

The 0.9-mile bike-lane extension on Second Avenue exceeded $11 million, partly offset by a $5 million federal grant.

“I would criticize the cost as being too high,” Sparrman said.

But he defends the multimillion-dollar signals that tell drivers when to turn left, and when pedestrians and cyclists may proceed straight.

“Frankly, there was a specific safety problem at each of those intersections,” Sparrman said. “It’s really important to have those green arrows.”

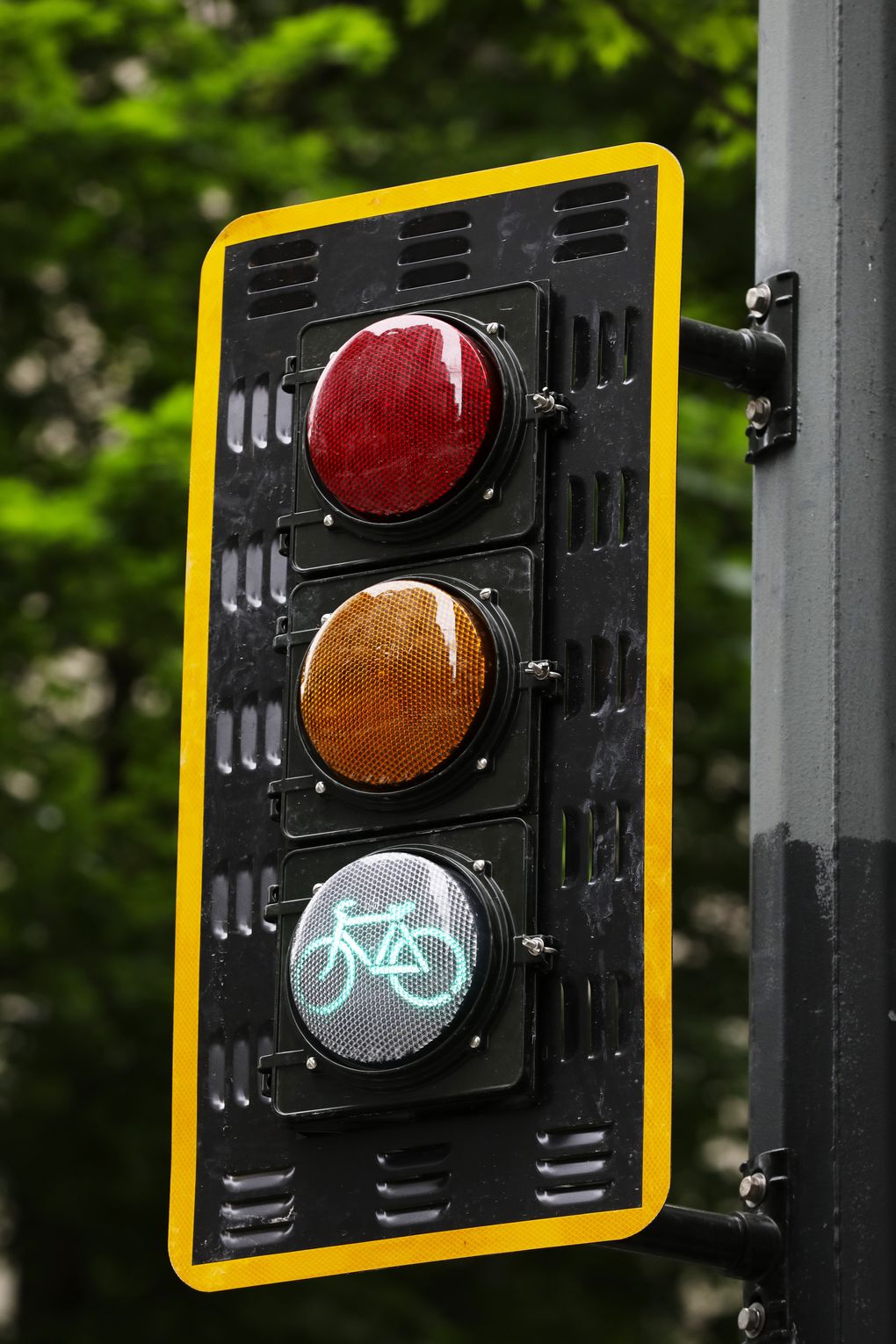

New signals like this one on Seventh Avenue tell cyclists when they can proceed.  (Ken Lambert/The Seattle Times)
New signals like this one on Seventh Avenue tell cyclists when they can proceed. (Ken Lambert/The Seattle Times)

He brought up the death of Sher Kung, an attorney and new mother killed by a left-turning box-truck driver at Second and University Street in 2014.

Two weeks later, SDOT opened a separated bike lane including that spot, for only $1.5 million, by simply moving the parking stalls and changing traffic signals on old corner posts. But confused drivers ran red arrows, while a few bikes and cars collided at driveways.

The city gradually added signals, 158 planter boxes to improve separation, and bike-slowing speed humps.

But for its 2018 Belltown extension, the city delivered full facilities from day one.

Project workers sawed away 13 sidewalk curb bulbs to make way for the 8-foot-wide, two-way bike corridor, maneuvered around seven private job sites, squeezed tasks into night and weekend shifts, and faced delays coordinating with busy City Light teams.

“Any estimator would add multipliers to account for all of this,” an SDOT project manager said in a recent email provided by the agency. Even in 2014, colleagues understood that if Second were outfitted with new signals, the project could hit $11 million, the manager recalled.

Drivers and pedestrians suffered through months of detours while concrete curbing and wheelchair-accessible corner ramps took shape.

“The construction, I would say, was lengthy but worth every penny,” said Andrew Koved, a cycle commuter who stopped by an SDOT doughnut giveaway there May 10. “It’s much less dangerous now.”

Swerving taxis and cars are no longer a constant threat, he said, because people can now exit vehicles onto concrete islands.

Vehicle collisions have decreased from 4.6 per month to 2.5 per month, city data say, and no bike-involved crashes have been reported.

Puget Sound’s searing labor market and rising material costs fuel higher bids, a problem also hindering Sound Transit and the state Department of Transportation.

The winning Second Avenue bid was $5.2 million, by KC Equipment, followed by $1.3 million in change orders. Nearly half the $11 million went into planning or other soft costs.

“The design costs looked pretty high,” Sparrman said.

The city has hired a consultant to investigate.

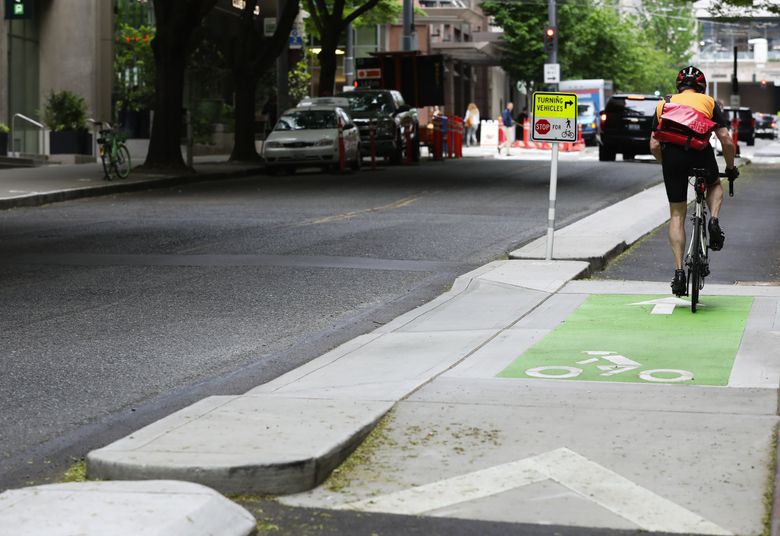

A cyclist is seen passing a curb-cut into Pacific Place between Olive Way and Pine Street along the new and costly Seventh Avenue bike lane last week in Seattle  (Ken Lambert/The Seattle Times)
A cyclist is seen passing a curb-cut into Pacific Place between Olive Way and Pine Street along the new and costly Seventh Avenue bike lane last week in Seattle (Ken Lambert/The Seattle Times)

“A million things can happen”

SDOT project development director Darby Watson apologized for not airing the higher costs sooner, though she didn’t join the agency until 2016, after those pie-in-the-sky campaign promises.

“I mistakenly thought we could address that, and make these projects come in for the $860,000 or thereabouts, and I was wrong,” she told a volunteer bike-advisory board earlier this month. “Looking back, I personally should have been more critical about those.”

She devised simpler designs for short bike lanes last fall on Pike and Pine streets downtown, for $350,000 each. Those rely on plastic posts and planter boxes, “something we’ve borrowed from Vancouver,” Sparrman said.

In future projects, he would avoid designs that require changing stormwater flows.

“Drainage is really expensive,” he said. SDOT should try to save money by allowing stormwater to flow across a bike lane into existing drains, he said.

New drains and basins on Seventh Avenue cost $162,000 plus engineering, but the Second Avenue project has gaps between pedestrian islands, where runoff trickles into existing drains.

“A million things can happen” to boost prices, said former SDOT executive Gray.

Bike lanes should become cheaper with experience, and work in neighborhoods outside downtown will cost less, she said.

Two years ago, a 1.7-mile Roosevelt Way bike lane was delivered for $590,000, by combining that work with a simultaneous $9 million street rebuild, SDOT said.

Bike-advisory board member Don Brubeck suspects the city’s “excruciating” contract-awarding process often delays work and drives up cost.

Second Avenue’s high costs are one reason Sparrman postponed a similar Fourth Avenue bike lane until 2021, he said. But his main worry was losing “resiliency” for gridlocked buses and cars, until light-rail capacity increases.

Instead, he proposes to accelerate Pike-Pine bikeway extensions, from Sixth Avenue across Interstate 5 onto Capitol Hill.

Those lanes should open next year — despite a rivalry for space, when construction trucks frequent the Washington State Convention Center expansion project.

“Bus layovers and construction loading needs have to be second priority, compared to completing the safe bicycle system,” Sparrman said.

SDOT has $10 million to spend from the convention project’s “community benefits” fund, to build bicycling paths on Pike-Pine.
