Construction on the Highway 520 bridge is finally getting down to water level this week, as workers will soon build the fixed sections that extend up from Lake Washington to the Eastside.
Construction on the Highway 520 bridge is finally getting down to water level, as workers will soon build the fixed sections that extend up from Lake Washington to the Eastside.
Barges and cranes should arrive Thursday next to the old bridge, followed soon by noisy pile driving, and some excavation onshore.
This phase of the massive bridge project includes huge foundations and concrete spans near shore, twin sloping transition spans that reach down to the lake, dozens of floating pontoons, and road decks fastened upon them.

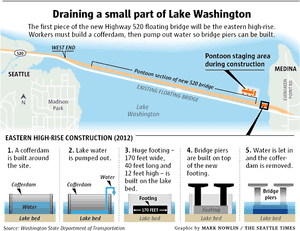

Early on, a cofferdam made of vertical steel walls will be inserted just onshore, allowing crews to dig out a wide basin to pour the first concrete footing. Another cofferdam and pour are planned in the lake in August, after summer salmon runs are past.
